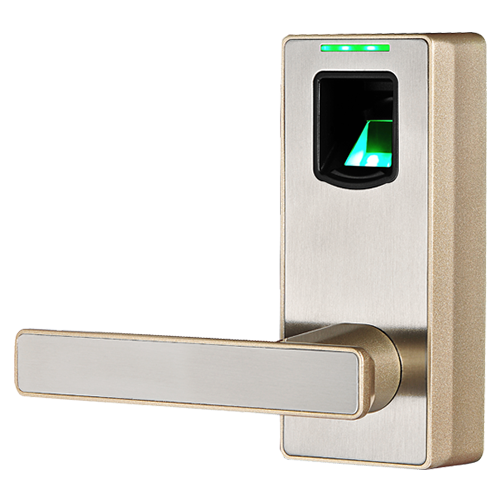

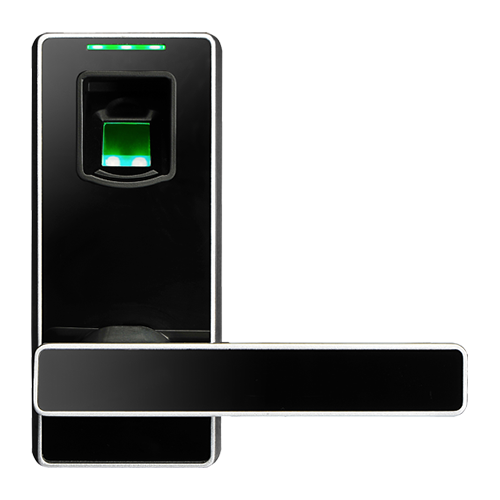

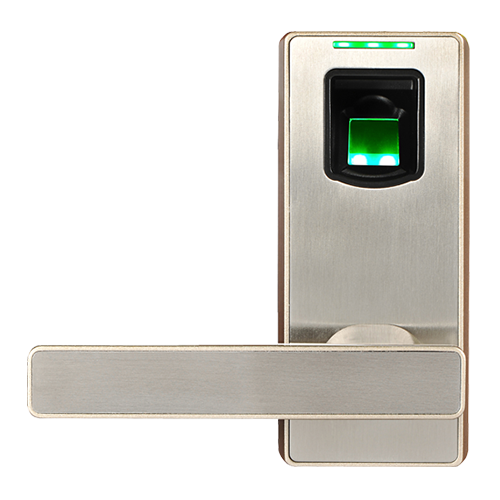

ML10

ML10 is a smart lock with embedded fingerprint recognition technology. It is DIY design,which can replace knob lock easily and quickly. You even can do it by yourself.

Features

American standard single latch for easy replacement and installation

External terminals to draw back-up power from a 9V battery

With the new generation fingerprint recognition algorithm

Touch to open

Parameter

Material	Zinc Alloy
User Capacity	Admin -10, Normal User - 60, Temporary User - 20
Operating Temperature	0 °C- 45 °C
Power Supply	4 x AA Alkaline Battery
Backup Unlock	Mechanical Key & 9V Battery
Door Thickness	30-38 mm (optional), 39-46 mm (standard), 47-54 mm (standard), 55-60 mm (optional)
Dimensions	Front-69(W) x 155(L) x 35(D)mm,Back-69(W) x 155(L) x 25(D)mm
